Mill Creek, Oklahoma

This sand plant was looking to expand its operation to include loading bulk sand into semi trucks for local clients. This proved to be a unique design as it required designing and constructing around other active operations. The final design allowed the client to load two trucks side-by-side in roughly five minutes each! To accomplish this goal a series of equipment was used including belt conveyors, storage silos, control gates, and more.

Tools
Revit
Inventor
AutoCAD
3ds Max
Unreal Engine

Monahans, Texas

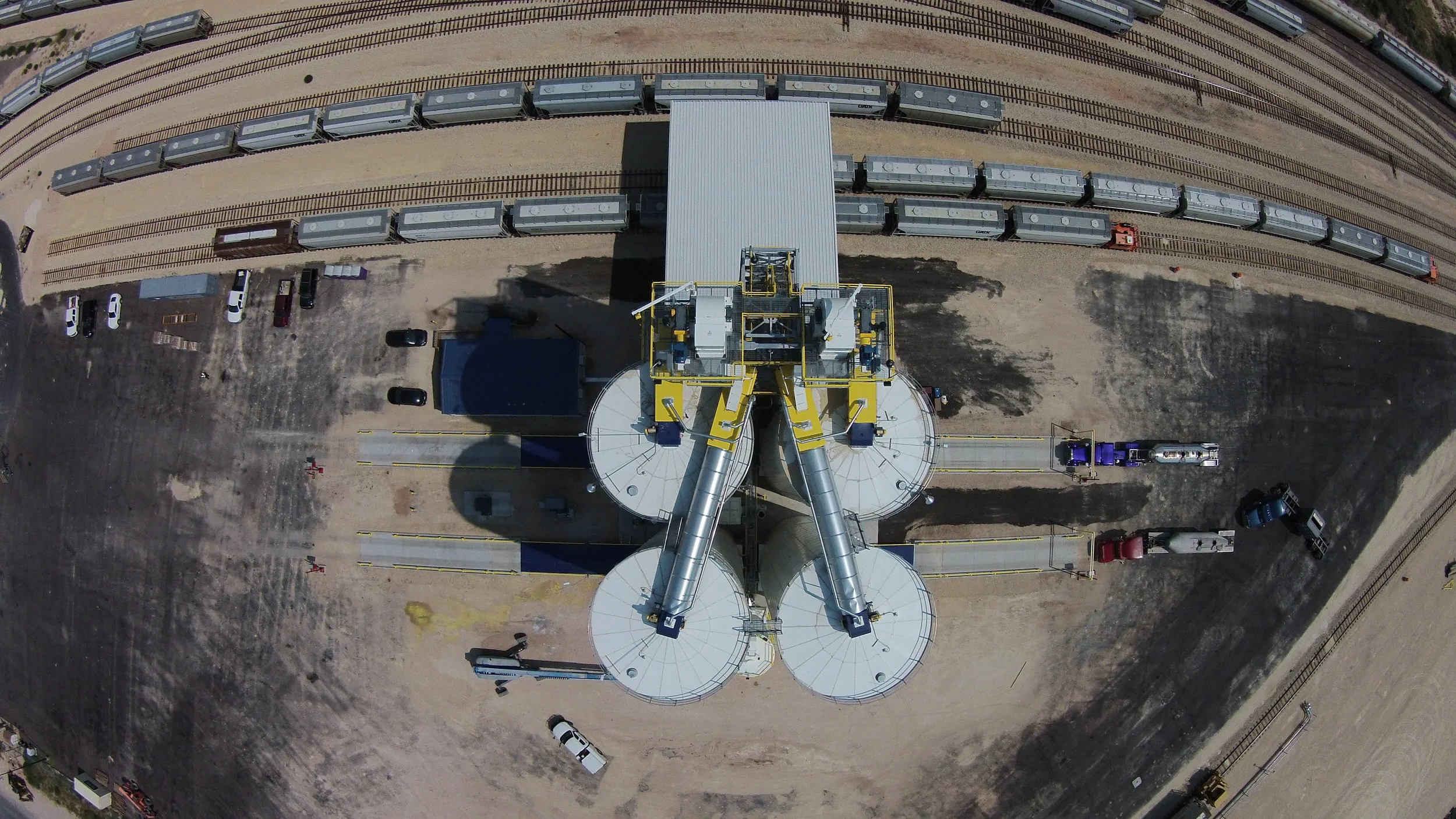

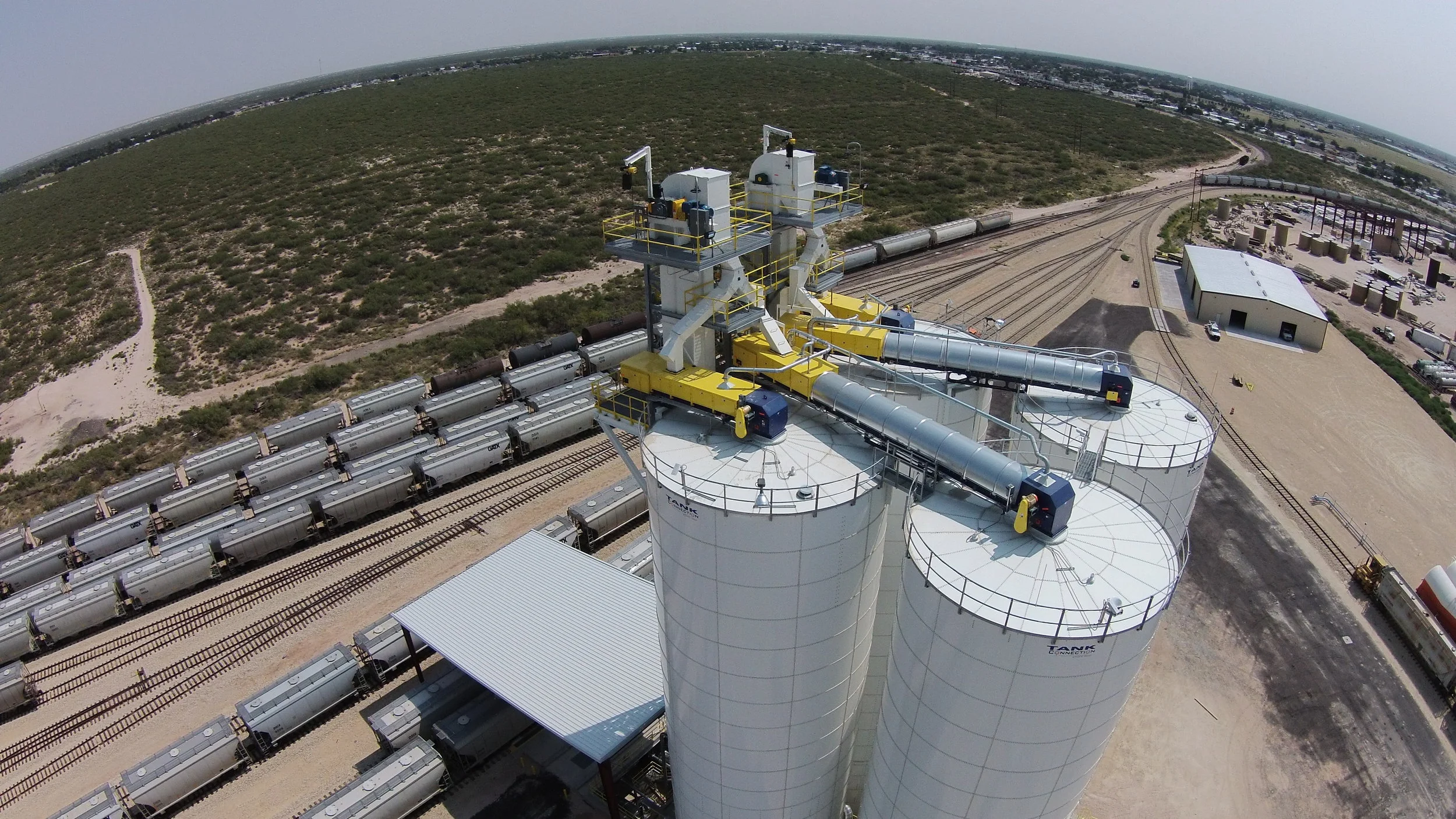

This facility was specially designed to solve a problem. That problem was the need to transfer Frac sand from inaccessible rail cars loaded at mine, to more mobile semi trucks. Which are more easily able to deliver the material to its final destination. To solve this problem, a complex set of equipment was designed specifically for this application. To include belt conveyors, bucket elevators, storage silos, control gates, and much more.

Tools
Inventor
AutoCAD
Showcase
Sketchfab
Photoshop

This interior was inspired by the new trend and fascination with everything mid-century modern. Such as these slingback chairs and stacked tables, even the exposed brick has found its way into this sweeping trend.

Tools
3ds Max
Marvelous Designer
Vray
RenderStorm
Sketchfab
Photoshop

Jessup, Maryland

The Series 1500 is an induced draft crossflow cooling tower used where sound is a primarily concern. With key costumers in mind such as hospitals, office buildings, and even large residential spaces. BAC has made substantial improvements to lower costs of use and maintenance helping to make the Series 1500 a great option for any architects next green building design.

Tools
Inventor
AutoCAD
3ds Max
Showcase
Sketchfab

Orlando, Florida

Designed with an openness to draw people in the frameless glass facades idea was to put as little obstructions between you and the restarurants atmospere. It was accomplished by using structural glass “fins” and stainless steel brackets to support the structure instead of bulky window glazing.

Tools
Inventor
AutoCAD
3ds Max
Showcase
Sketchfab

El Dorado, Arkansas

The focus of this project was to design a very open and modern feel for the lobby of the new headquarters of Murphy Oil. To accomplish this the engineering team chose to use large and windowless framed windows accented by stainless steel support brackets and glazing.

Tools
Inventor
AutoCAD
3ds Max
Showcase
Sketchfab

Little Rock, Arkansas

The Skippy Tank Farm is a mix of both new and existing equipment used in the production of peanut butter. On this site the engineering team used "As Built" dimensioning tactics to accurately measure and place equipment for a plant expansion. This expansion included railing, storage tanks, process piping, pumps and much more.

Tools
Inventor
AutoCAD
3ds Max
Showcase
Sketchfab

Portland, Oregon

An agrotain mixer is used in the fertilizer industry when there is a need to mix multiple types of dry fertilizer, creating a unique blend. In addition to blending dry fertilizer options are available to further enhance the blend by adding a liquid fertilizer spray.

Tools
Inventor
AutoCAD
Showcase

Norwood, North Carolina

An Inclined Drag Conveyor has many varying uses, but in the Fertilizing world they are used to transfer fertilizer into storage buildings. This is accomplished by Semi's or Railcars pulling over the inlet port in the lower section. After the gates have been opened the chain and paddles inside pull the materials up the length of the conveyor and out of the discharge end. Typically the material would be discharged onto another conveying system inside of the storage building.

Tools
Inventor
AutoCAD
Showcase

Dallas, Texas

As an alternative to the Gravity Tripper the “Trip Slinger” was introduced to throw material from the conveyor perpendicularly using a low horsepowered motor. What this did was allow for material holding areas a larger storage capacity by filling the area from front to back instead of form the center out. In addition to larger capacities it also helped to cut delivery costs for clients as they were having to pay for less shipments.

Mild steel conveyor systems are used in alternative situations whenever stainless steel isn’t needed. Such as feed and seed or cement facilities where items caustic components such as ammonia are not present.

Tools
Inventor
AutoCAD
Showcase

Fort Valley, Georgia

Serving as the first major sub assembly in a belt conveyor system. The “Head Section” as it is called, is where the material is distributed onto the modular conveyor. Problems tended to arise in this part of the system due to lack of structural support and moisture in the system. These issues were solved by adding braces that attached to the existing structure, and adding moisture guards to the unit itself.

Tools
Inventor
AutoCAD
Showcase

Fort Valley, Georgia

Each conveyor mid section was specifically designed to handle different amounts of material and at different rates of speed. To handle these changes the sections would increase in width in order to accommodate more material.

Tools
Inventor
AutoCAD
Showcase

Fort Valley, Georgia

As the end of the conveyor system the “Tail Section” housed the motor, which pulled the belt and material along. This final section of the conveyor system had more concerns than the rest of the systems combined. In addition to the structural support needed, there were concerns about dust and material loss. Also was the concern of how to keep the correct amount of tension on the belt (too much and the belt will break, not enough and material will not be pulled along the belt). To solve these issues items were added such as belt tensioners, and dust collection through chutes for reclamation.

Tools
Inventor
AutoCAD
Showcase

Sparta, Wisconsin

Shuttle Conveyors are a unique version of the more common belt conveyors. They are typically used for lower cost solutions to belt conveyors. They tend to run along a set path using a rail system powered manually or by small motors.

Tools
Inventor
AutoCAD
Showcase

Geary, Oklahoma

Commonly called knife gates or “Slide Gates”, and used in situations where flow adjustment is crucial. These gates are operated in a variety of ways including air actuated, manually, and hydraulics.
